Precise 50W Laser Marking Machine With Integrated Structure

Name: Precise 50W Laser Marking Machine With Integrated Structure
Brand: MRJ-Laser
Price: 1 USD

Brand Name : MRJ-Laser

Model Number : MRJ-FL-3D

Certification : CE

Place of Origin : China

MOQ : negotiable

Price : Negotiable

Packaging Details : custom

Payment Terms : T/T，paypal

Model : KR-FL-3D50

Output power : 50W

Pulse Energy : 1.5MJ

Repetition FREQ. : 50k-120khz

Laser Wavelength : 1064nm

Marking Field : ≤700mmx700mm

Contact Now

Precise 50W Laser Marking Machine With Integrated Structure

Features:
1, High speed marking,Special laser head for high-speed scanning
2, Long lifetime,More than 100000 hours life for the laser source
3, Safe,Protective cover with anti radiation function,dustproof and eyes protecting
4, High quality laser beam,fine marking.The diameter of focal spot is not cover 20um.
5, Low consumption,About 0.5KW for whole machine
6, Portable,easy to carry

Application Materials:

Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as
ABS, Nylon, PES, PVC, Makrolon,etc.

Applicable Industries:

Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Product Performance Parameters

Model	KR-FL-3D20	KR-FL-3D30	KR-FL-3D50
Output power	20W	30W	50W
Pulse Energy	1.2MJ	1.3MJ	1.5MJ
Repetition FREQ.	20K-80KHz	30K-80KHz	50k-120khz
Laser Wavelength	1064nm	1064nm	1064nm
Marking Field	≤300mmx300mm	≤400mmx400mm	≤700mmx700mm
Min. Line Width	30um	30um	30um
Marking Speed	≤6000mm/s	≤6000mm/s	≤6000mm/s
Support Font	TrueType Font, AUTOCAD Single Line Font, Custom Font
1D Barcode	CODE39/CODE128/ITF/CODEABAR/EAN/UPC, etc.
2D Barcode	OR/PDF417/DataMatrix(ECC200), etc.
Input File	PLT/DXF/DWG/BMP/JPG/JPEG/PNG/TLF, etc.
3D Model	Support STL Format
Input Power	Single Phase 110V/220V/50-60Hz
Overall Power Consumption	≤600w	≤800w	≤1000w
Cooling Method	Air Cooling	Air Cooling	Air Cooling
Control Interface	USB2.0	USB2.0	USB2.0

Product Tags:

3d laser engraving machine

3d printer engraver

Quality Precise 50W Laser Marking Machine With Integrated Structure for sale

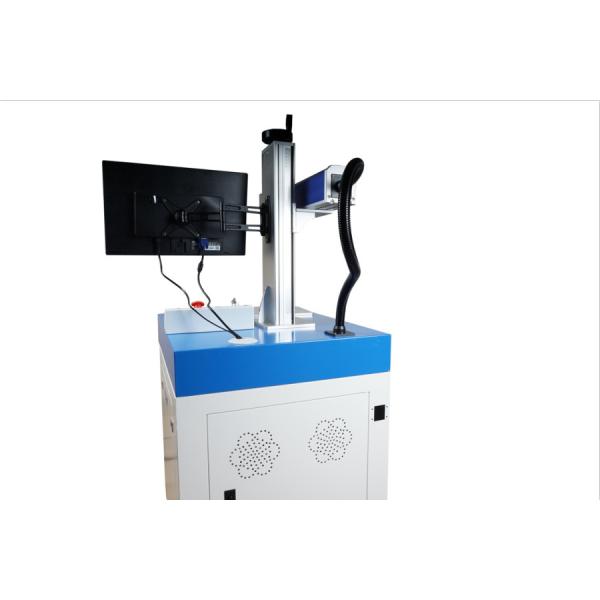

Precise 50W Laser Marking Machine With Integrated Structure Images
